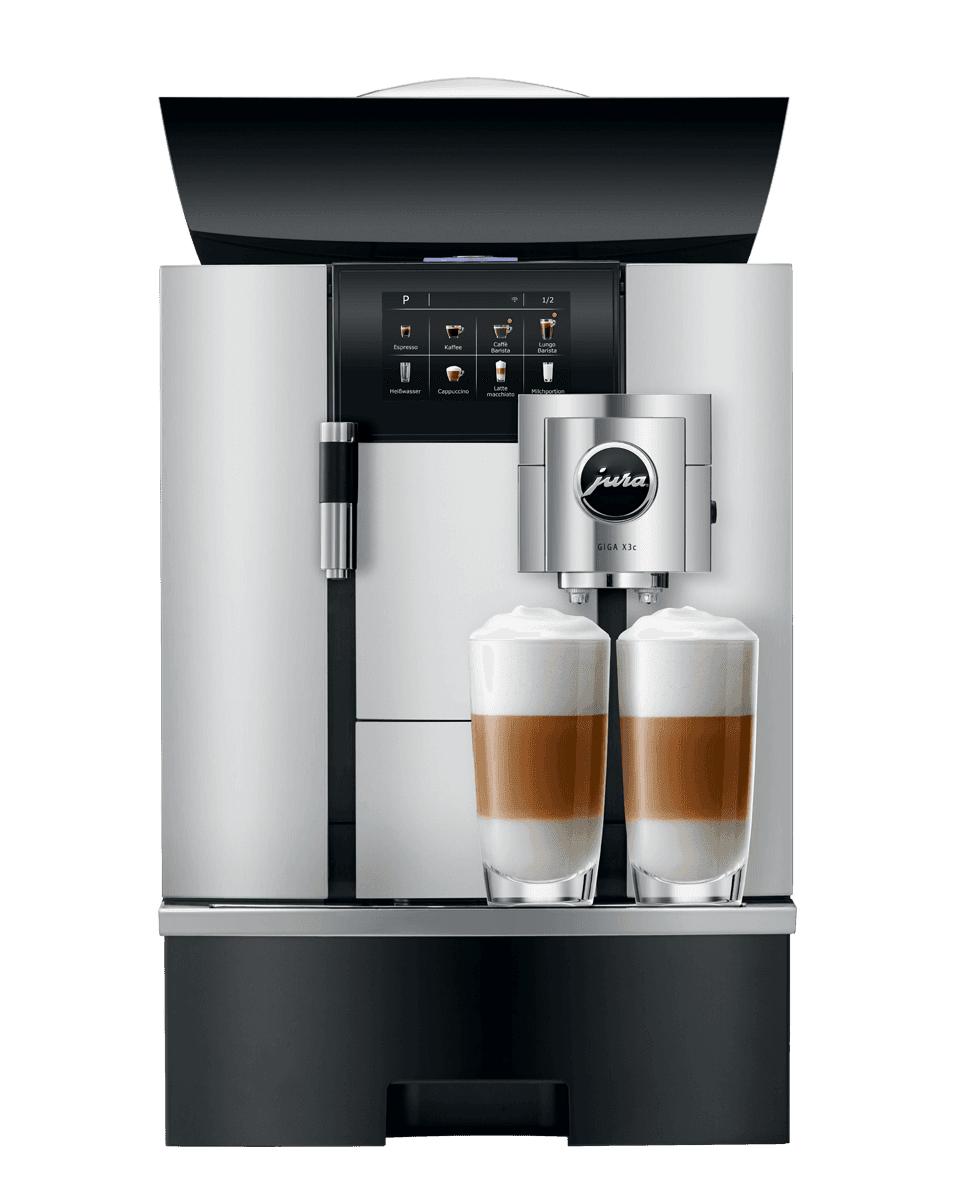

GIGA X3c
High performance in the top class
The GIGA X3c allows JURA to impressively demonstrate Swiss innovation and professionalism down to the very last detail. Anywhere where a capacity of up to 150 cups is the order of business, the machine impresses users with its quality, functionality and reliability. Coupled with top performance in every respect, this results in a high-tech automatic coffee machine that is ideally tailored to the requirements of large offices, the breakfast, seminar and conference venue sectors as well as self-service areas.
GIGA X3c - Aluminium
returnForm_articleNumber 15230
State-of-the-art technologies for perfect enjoyment

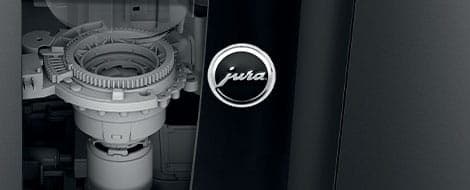

It's all inside the GIGA X3c: The high-performance ceramic disc grinder guarantees reliable grinding results for many years which are sure to be precise, consistent and even. A top innovation provides that extra special something: A.G.A. (Automatic Grinder Adjustment) – the electronically controlled automatic readjustment system. The Pulse Extraction Process (P.E.P.®) optimises the extraction time for short specialities and CLARIS Pro Smart delivers perfect water quality for a pure taste in combination with the Intelligent Water System (I.W.S.®).

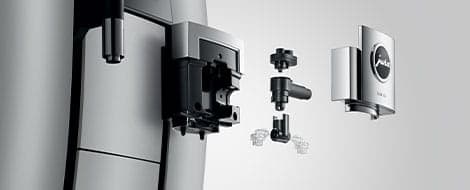

The GIGA X3c features a sophisticated height-adjustable dual spout, which finishes off trend specialities with milk and milk foam to perfection thanks to fine foam technology. The speed function ensures speciality coffees in record time. Time spent topping the machine up is reduced to a minimum thanks to the large bean container with a holding capacity of 1 kg and aroma preservation cover. What's more, the high capacity of the water tank, drip tray and coffee grounds container maximise autonomy, making the GIGA X3c ideal for mobile use too.
Increased power combined with the highest quality – that's the GIGA X3c. The concise, 4.3” high-resolution touchscreen colour display is completely intuitive. Modern graphics that are easy to understand mean that even first-time users can navigate with confidence. The dishwasher-proof drip tray can easily be removed, emptied and reinserted with just one hand. The centre of gravity is ideally located to prevent any spillages. Simple, clean, quick, convenient – this 5-star concept is incorporated down to the very last detail.

TÜV-certified hygiene guarantee
Maintenance of the GIGA X3c is just as straightforward, logical and intuitive as its operation. Original JURA maintenance products and integrated rinsing and cleaning programmes ensure TÜV-certified hygiene at the touch of a button. The milk system is also very easy to clean. The fully automatic process is started with just a touch on the display and ensures perfect cleanliness. The solid dual spout can be dismantled in just a few easy steps. The milk spouts at the front are readily accessible and easy to replace if necessary.

As individual as your requirements
The GIGA X3c can be used alone or combined with accessories such as a cup warmer or accounting system to create the ideal complete coffee solution for any requirement. It can also conveniently adapt to increasing requirements.

GIGA X3c: Specifications
| Recommended maximum daily output | 150 |
|---|
| Catering | |
|---|---|
| Coffee to Go | |
| Office floor solutions | |
| Seminar/conference facilities | |
| Breakfast room |
| Ristretto | |
|---|---|
| 2 × Ristretto | |
| Espresso | |
| 2 × Espresso | |
| Coffee | |
| 2 × Coffee | |
| Caffè Barista | |
| 2 × Caffè Barista | |
| Lungo Barista | |
| 2 × Lungo Barista | |
| Special coffee | |
| 2 × Special coffee | |
| Espresso doppio | |
| Pot of coffee | |
| Espresso macchiato | |
| 2 × Espresso macchiato | |
| Sweet Espresso macchiato | |
| Caffè latte | |
| 2 × Caffè latte | |
| Cappuccino | |
| 2 × Cappuccino | |
| Flat white | |
| 2 × Flat white | |
| Latte macchiato | |
| 2 × Latte macchiato | |
| Portion of milk foam | |
| 2 × Portion of milk foam | |
| Portion of milk | |
| 2 × Portion of milk | |
| Hot water | |
| Hot water for green tea | |
| Hot water for black tea | |
| Ground coffee |
| Espresso | 96 |
|---|---|
| 2 × Espresso | 142 |
| Coffee | 66 |
| 2 × Coffee | 76 |
| Cappuccino | 76 |
| 2 × Cappuccino | 110 |
| Hot water | 104 |
| Number of specialities | 32 |
|---|---|
| Speed function | |
| Automatic Grinder Adjustment (A.G.A.) | |
| Automatic switching between milk and milk foam | |
| Permanent water connection | |
| Transmitter supplied as standard | Smart Connect |
| Pulse Extraction Process (P.E.P.®) | |
|---|---|
| Variable brewing unit | 5 – 16 g |
| Grinder | Electronically adjustable ceramic disc grinder |
| High-performance pump, 15 bar | 2 |
| Thermoblock heating system | 2 |
| Fluid systems | 2 |
| Milk system / interchangeable milk spout | HP3 / CX2 |
| Powder chute for ground coffee | |
| Active bean monitoring |
| Rotary Switch | |
|---|---|
| Display | 4.3" touchscreen colour display |
| Position, duplicate and personalise products according to personal preference | |
| Individually programmable quantity of water for coffee | |
| Individually programmable coffee strength | 10 levels |
| Individually programmable amount of milk/milk foam | |
| Individually programmable milk/milk foam temperature | 10 levels |
| Individually programmable brewing temperature | 3 levels |
| Individually programmable hot water temperature | 3 levels |
| Intelligent Pre-Brew Aroma System with optional deactivation | |
| Generating code groups | |
| Resettable day counter | |
| Shows the number of preparations for each individual product |

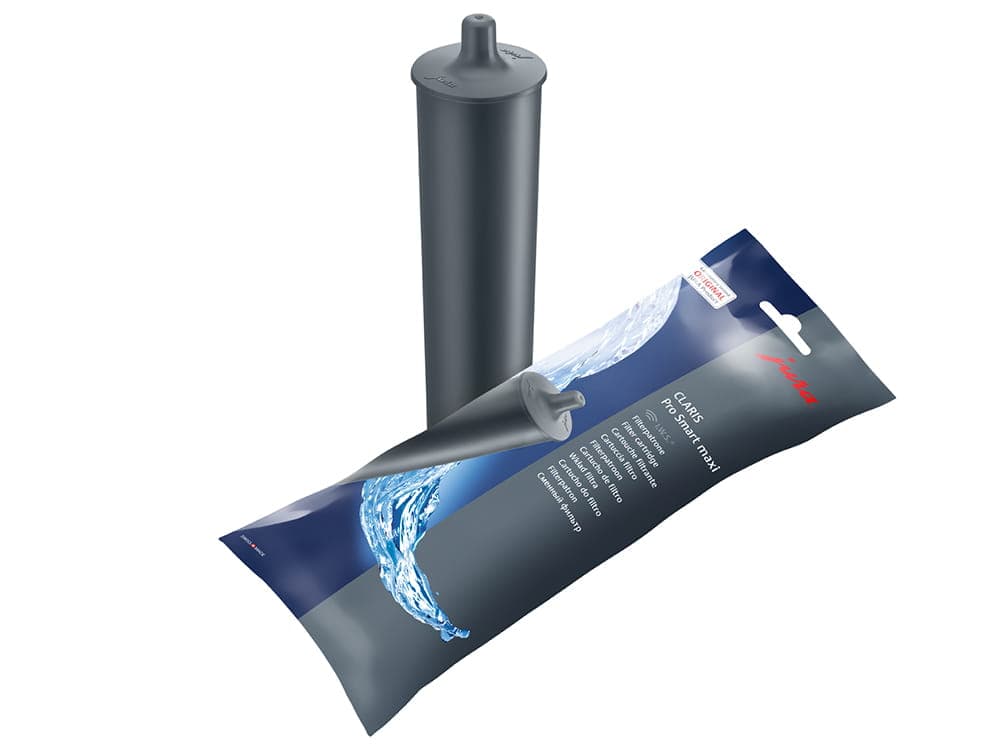

| Filter cartridge | JURA water filter system |
|---|---|
| One-Touch milk system cleaning (automatic) | |
| Integrated rinsing, cleaning and descaling programme | |
| Monitored drip tray | |
| JURA hygiene: TÜV-certified |
| Energy Save Mode (E.S.M.©) | |
|---|---|
| Zero-Energy Switch or power switch | |
| Programmable switch-off time | |
| Programmable switch-on/switch-off time | |
| Energy consumption per day (as per DIN 18873-2) | 0.480 kWh |
| Alu Frame Design© 3 mm | |
|---|---|
| Centre panel in Piano Black | |
| Cup illumination |
| Height-adjustable/width-adjustable dual spout | 70 – 159 mm / – |
|---|---|
| Height-adjustable hot-water spout | 69 – 165 mm |
| Bean container holding capacity | 1 kg |
| Coffee grounds container (approx. servings) | 40 |
| Cable length | 1.1 m |
| Voltage / power | 220 – 230 V ~ / 2700 W |
| Current | 10 A |
| Mains water connection thread size | 3/4" thread size |
| Stand-by power | < 0,5 W |
| Weight | 19 kg |
| Dimensions (W × H × D) | 32 × 55.5 × 49.7 cm |
| Article number, product code | 15230, Aluminium (EU) |
| EAN code | 7610917152308 |
| Country of production | Made in Switzerland |
| Model year | 2019 |
