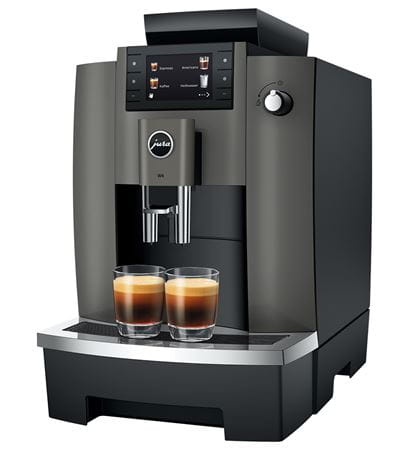

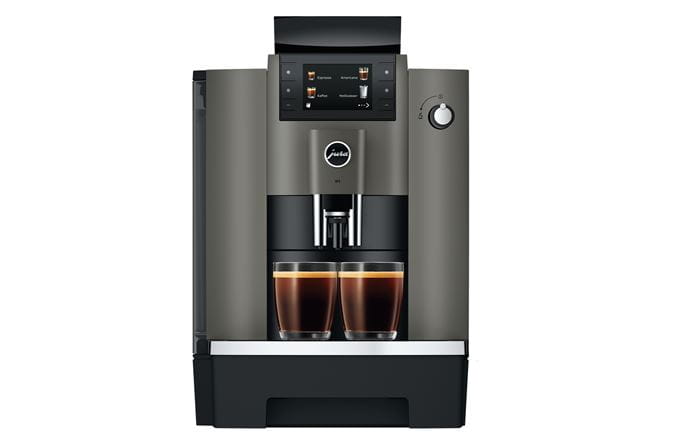

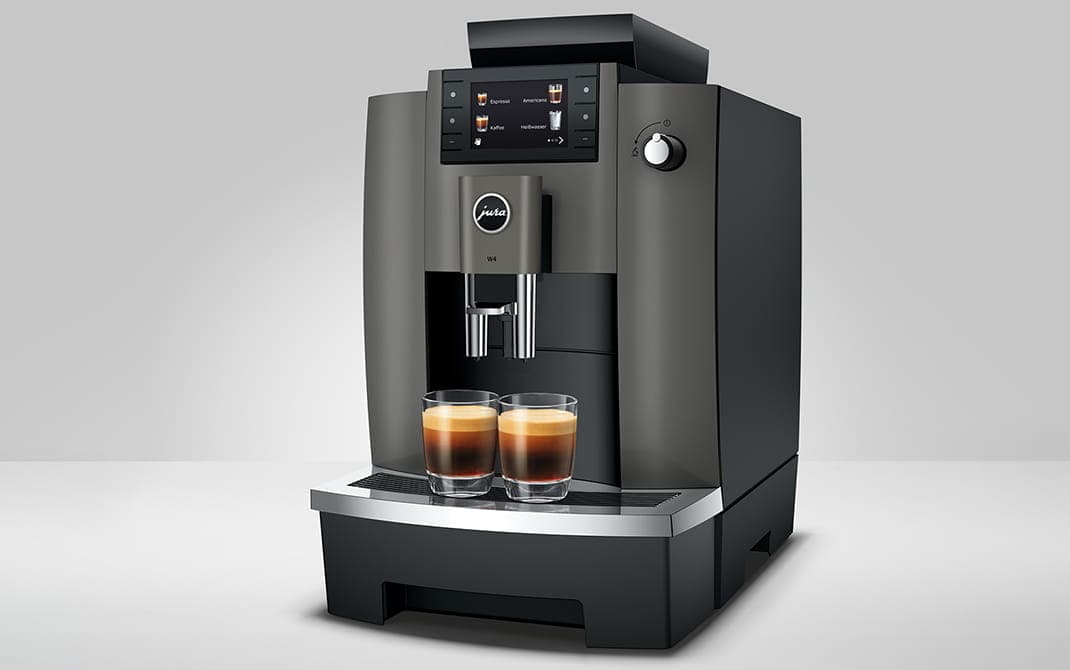

W4
Pure coffee automatic coffee machine in a compact business format
Compact and with all the comfort you could wish for in a business environment: the W4 is a robust, professional pure coffee automatic coffee machine that is extremely user-friendly.
W4 - Dark Inox (EA)
returnForm_articleNumber 15542

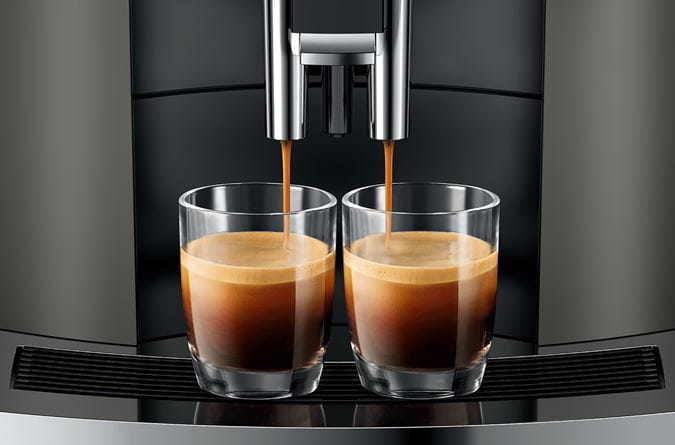

Outstanding coffee quality
The Professional Aroma Grinder (P.A.G.2) guarantees a consistently perfect coffee result and brings the full range of flavours into the cup. After each preparation, the P.A.G.2 rotates back to its original position, guaranteeing not only perfection, but also a constant grinding result over a long service life. The first-class coffee result is also ensured by three different brewing processes that automatically give the selected speciality its special character at the touch of a button – be it an espresso, a coffee or a lungo.

Complete usability

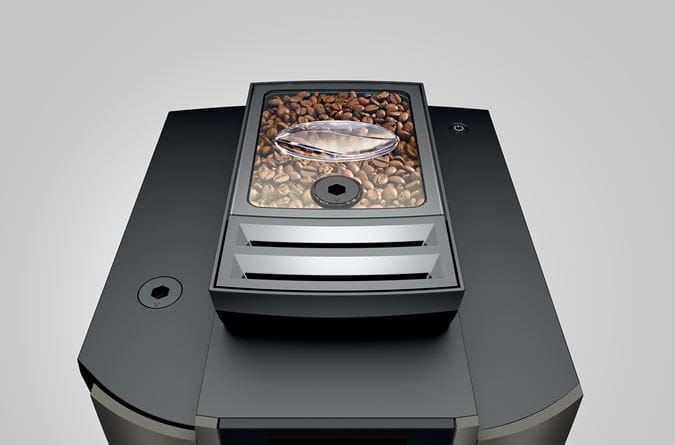

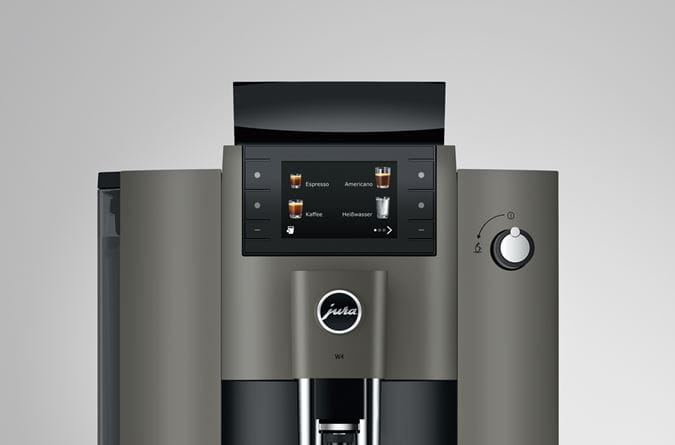

Professional in every respect, the W4 takes the needs of operators and coffee drinkers alike into account. With a 3.5-inch colour display and six buttons, it provides practical access to the menu. On the operating side, it impresses with its configuration and locking options. Thanks to the lockable water tank and bean container, it is protected against external influences and offers easy handling in daily use with ergonomically designed components such as the drip tray and coffee grounds container.

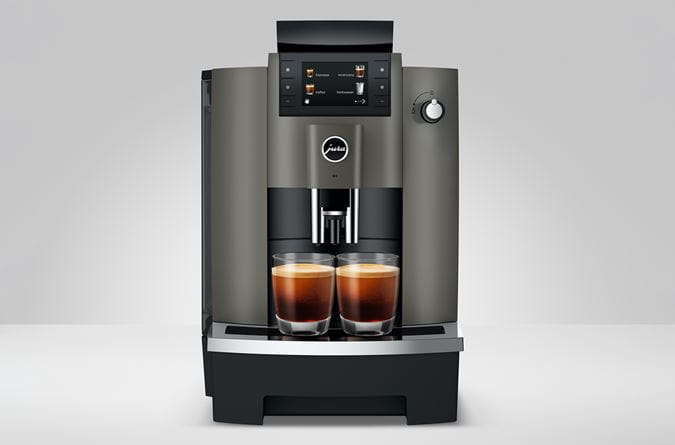

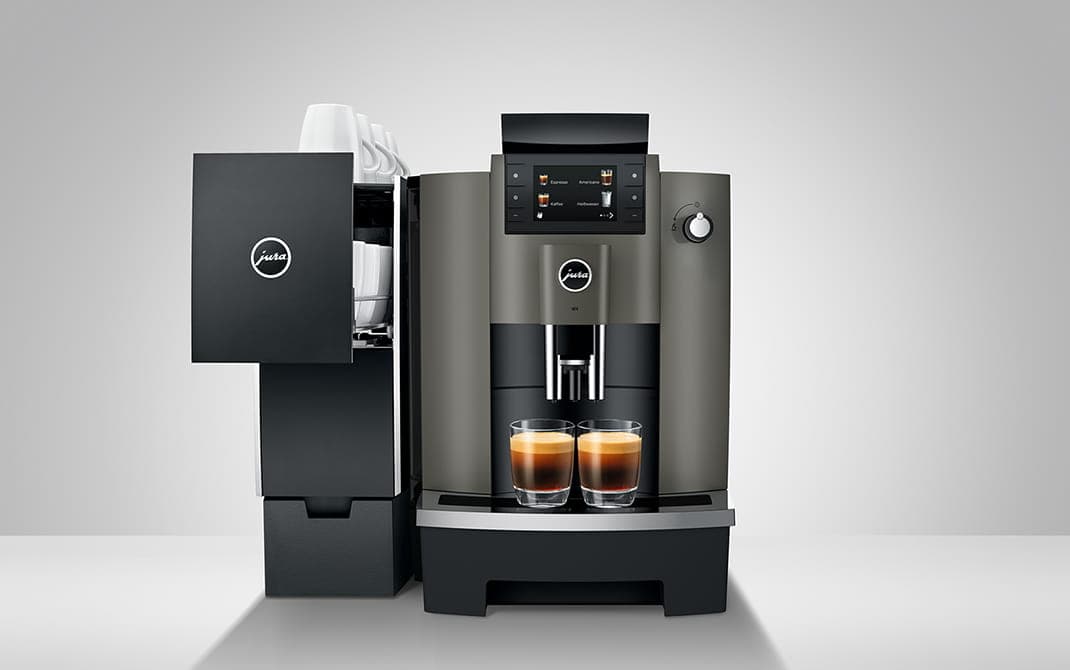

Design with a clean line
With its clean lines, the W4 radiates absolute calm. It anchors structure in the dynamic setting and blends harmoniously into the organised environment. The functionality and intuitive operating concept round off its profile as a user-friendly, professional automatic pure coffee machine.

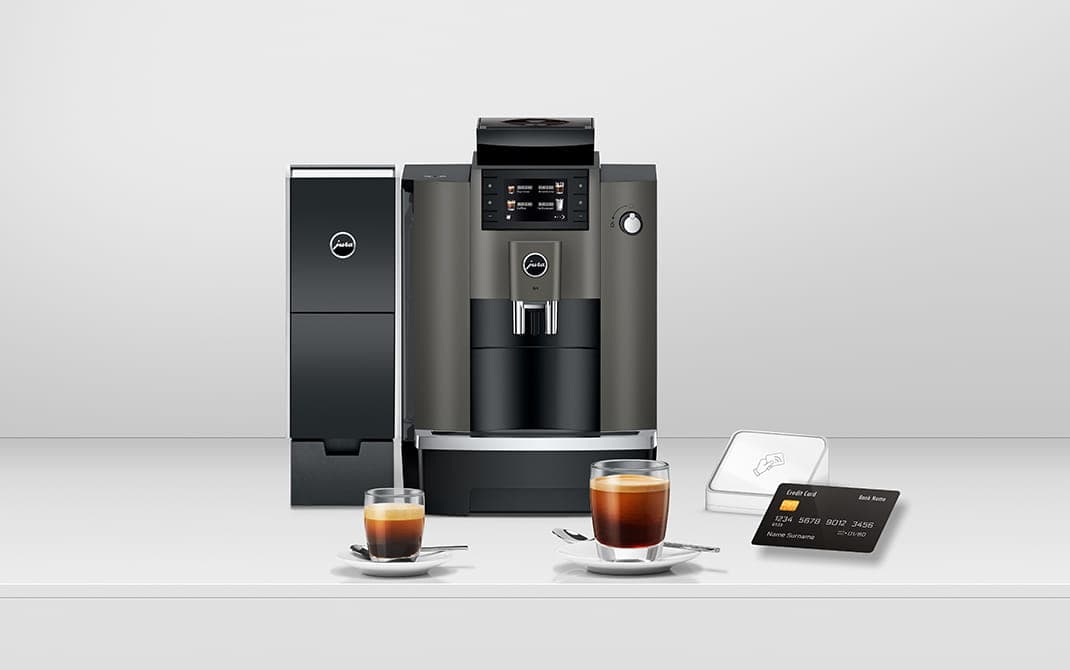

Supports payment systems
With an MDB interface unit, the W4 is ideally equipped for use in a commercial environment: In conjunction with the optional MDB interface system, it can be connected to popular payment systems and also enables the use of Pocket Pilot 2.0. As free, web-based software, Pocket Pilot 2.0 also simplifies contactless payments for start-ups and small businesses. The software also includes a flexible accounting and administration system.

W4: Specifications
| Recommended maximum daily output | 50 |
|---|
| Studios | |
|---|---|
| Offices | |
| Business premises | |
| Stores | |
| Factories and workshops |
| Espresso | |
|---|---|
| 2 × Espresso | |
| Coffee | |
| 2 × Coffee | |
| Americano | |
| Lungo | |
| Special coffee | |
| Espresso doppio | |
| Hot water | |
| Hot water for green tea |
| Espresso | 75 |
|---|---|
| 2 × Espresso | 102 |
| Coffee | 73 |
| 2 × Coffee | 95 |
| Hot water | 66 |
| Number of specialities | 10 |
|---|---|
| Intelligent preheating | |
| Transmitter supplied as standard | - |
| Pulse Extraction Process (P.E.P.®) | |
|---|---|
| Variable brewing unit | 5 – 16 g |
| Grinder | P.A.G.2 |
| High-performance pump, 15 bar | 1 |
| Thermoblock heating system | 1 |
| Fluid systems | 1 |
| Powder chute for ground coffee | |
| Active bean monitoring |
| Display | 3.5" colour display with buttons |
|---|---|
| Individually programmable quantity of water for coffee | |
| Individually programmable coffee strength | 10 levels |
| Individually programmable brewing temperature | 3 levels |
| Individually programmable hot water temperature | 3 levels |
| Resettable day counter | |
| Shows the number of preparations for each individual product |
| Smart Connect | |
|---|---|
| Wi-Fi Connect | |
| Payment Connect | |
| MDB Connect |
| Pocket Pilot 2.0 | |
|---|---|
| Data Communicator | |
| MDB Interface 2.0 |
| Filter cartridge | CLARIS Pro Smart+ |
|---|---|
| Integrated rinsing, cleaning and descaling programme | |
| Monitored drip tray | |

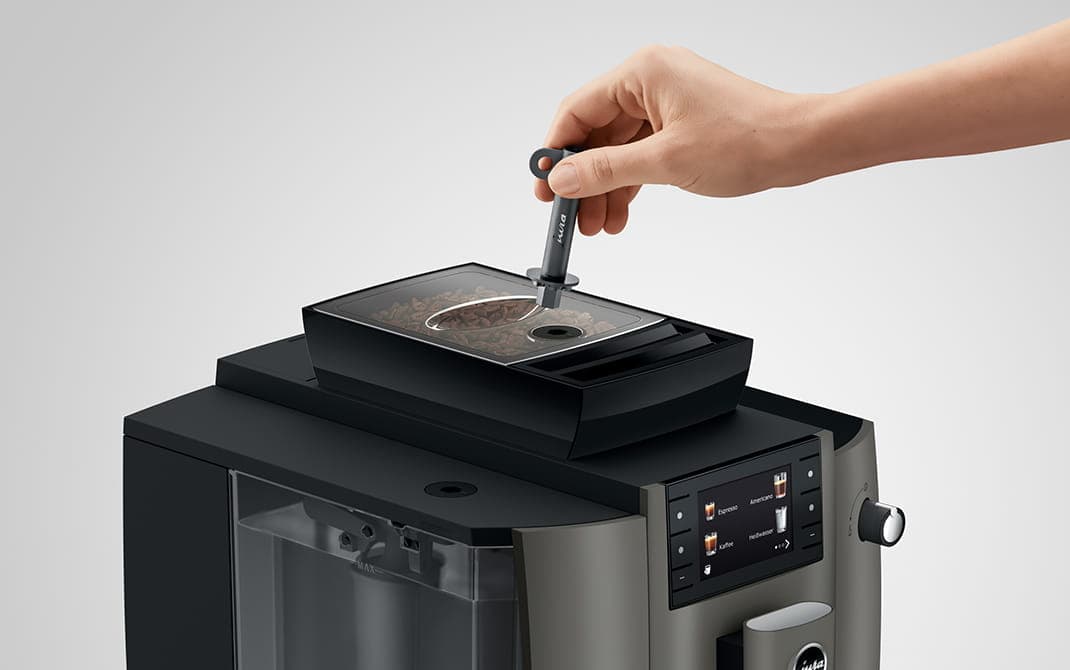

| Lockable bean container and water tank | |
| JURA hygiene: TÜV-certified |
| Energy Save Mode (E.S.M.©) | |
|---|---|
| Zero-Energy Switch or power switch | |
| Programmable switch-off time |
| Height-adjustable coffee spout with hot-water spout | 65 – 111 mm |
|---|---|
| Water tank capacity | 3 l |
| Bean container holding capacity | 500 g |
| Coffee grounds container (approx. servings) | 25 |
| Cable length | 1.1 m |
| Voltage / power | 230 V ~ / 1450 W |
| Current | 10 A |
| Stand-by power | <0.5 W |
| Weight | 10.4 kg |
| Weight (net) | 10.4 kg |
| Weight (gross) | 13.3 kg |
| Dimensions (W × H × D) | 29.5 × 44.3 × 44.6 cm |
| Article number, product code | 15542, Dark Inox (EA) |
| EAN code | 7610917155422 |
| Country of production | Made in Portugal |
| Model year | 2025 |
W4 (EA/SA/INTA) Instructions for Use (EN)
- W4 (EA/SA/INTA) Instructions for Use (EN) - (PDF, 2.1 MB)
- W4 (EA/SA/INTA) Mode d’emploi (FR) - (PDF, 1.8 MB)
- W4 (EA/SA/INTA) Kasutusjuhend (ET) - (PDF, 1.7 MB)
- W4 (EA/SA/INTA) Instrukcja obsługi (PL) - (PDF, 1.8 MB)
- W4 (EA/SA/INTA) Bedienungsanleitung (DE) - (PDF, 1.8 MB)
- W4 (EA/SA/INTA) Gebruiksaanwijzing (NL) - (PDF, 2.1 MB)
- W4 (EA/SA/INTA) Lietošanas instrukcija (LV) - (PDF, 1.7 MB)
- W4 (EA / SA / INTA) Naudojimo instrukcija (LT) - (PDF, 1.7 MB)
Technical documentation W4 EA SA INTA (EN)
- Technical documentation W4 EA SA INTA (EN) - (PDF, 302.8 KB)
- Documentazione tecnica W4 EA SA INTA (IT) - (PDF, 302.5 KB)
- Teknisk dokumentation X10 EA SA INTA (SV) - (PDF, 303.3 KB)
- Documentation technique W4 EA SA INTA (FR) - (PDF, 302.2 KB)
- Техническая документация W4 EA SA INTA (RU) - (PDF, 304.6 KB)
- Documentação técnica W4 EA SA INTA (PT) - (PDF, 303.3 KB)
- Documentación técnica W4 EA SA INTA (ES) - (PDF, 303.3 KB)
- Technische Dokumentation W4 EA SA INTA (DE) - (PDF, 302.9 KB)
- Technische documentatie W4 EA SA INTA (NL) - (PDF, 302.5 KB)
Changing the filter W4
Cleaning the machine W4
Descaling the machine W4
Product information sheet W4 EA
CAD - Download .DXF
CAD - Download .STEP

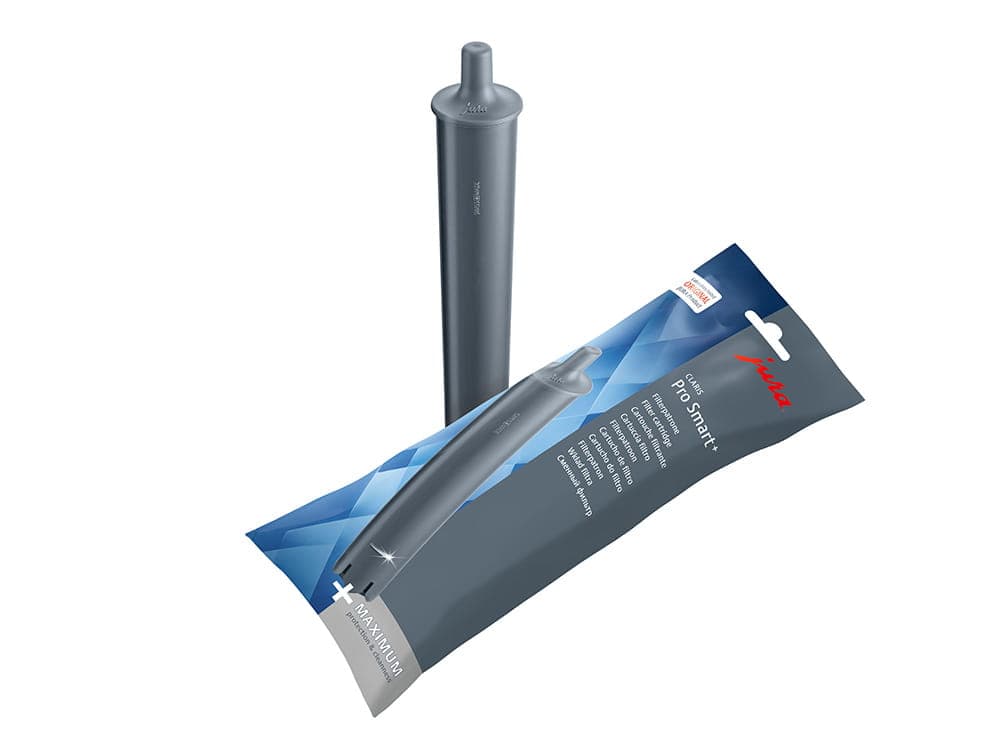

Changing the filter
Thanks to the integrated RFID (Radio-Frequency-Identification) chip, the CLARIS Smart continuously records information about filter use and alerts the user when the filter capacity has been used up. CLARIS Smart is automatically detected by the coffee machine and water is automatically routed through it.

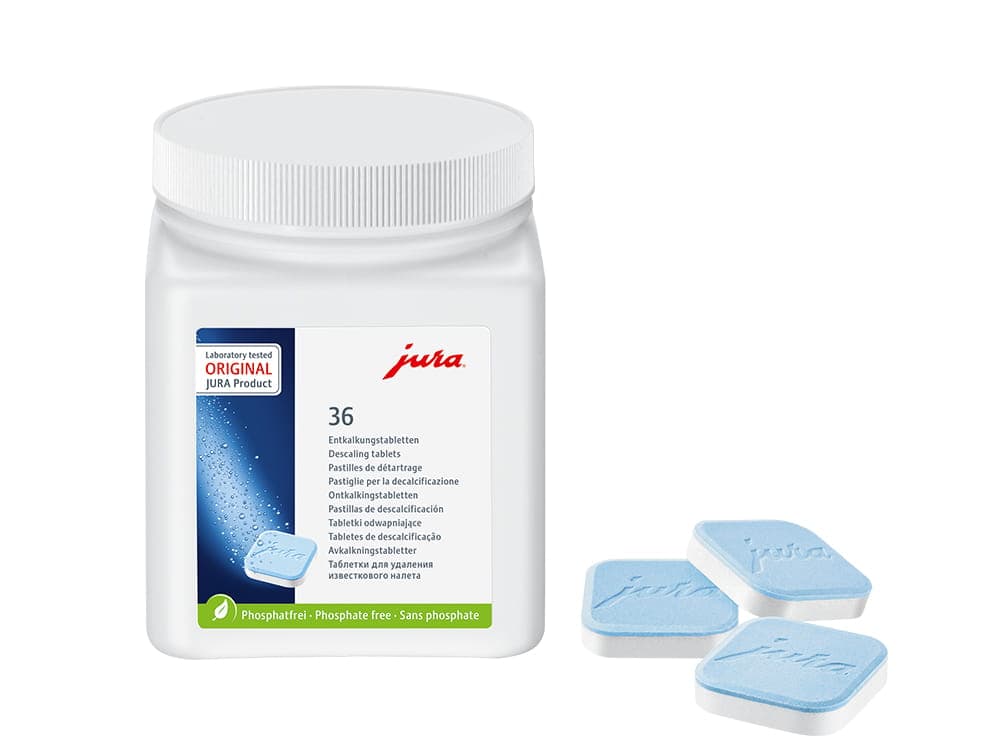

Descaling the machine
Scale is the biggest enemy of any appliance that uses water. Only use JURA descaling tablets, which remove scale gently to extend the life of your coffee machine.

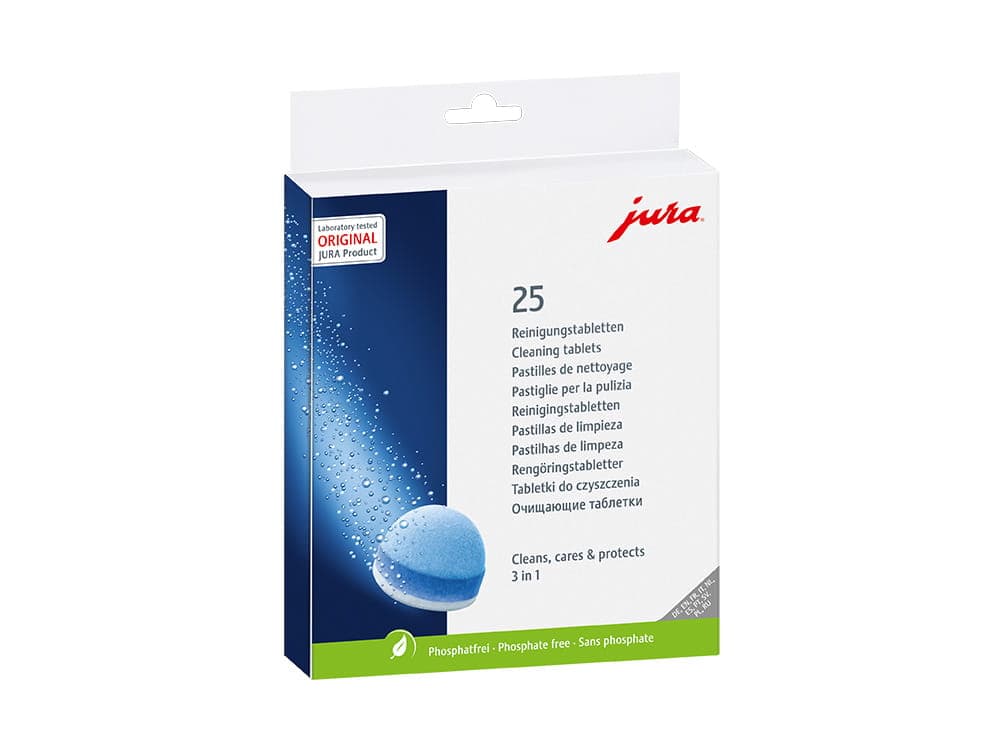

Cleaning the machine
Cleaning extends the life of your coffee machine and keeps the coffee quality at the highest level. Only use JURA cleaning tablets, which are specially designed to work with the cleaning programme.
